Techsbook · Direct Booking

A zero-result search became a recovered booking

In Techsbook a customer picks a technician for a telematics installation, pays and tracks the order. When no suitable technician was found, the path ended in a call or a chat with support.

I designed two connected solutions: one set of eligibility rules for the map and the list, and a handoff to a coordinator that keeps the service, address and time. The team shipped it.

Role
Product Designer
Research, flows, design, handoff
Team
PM, 2 engineers, coordinator
My role on the team: product design
Timeline
6 weeks
February and March 2026
Status
Released in April 2026
iOS and Android, web app
31%

of zero-result sessions could be linked to a paid booking afterwards

before this, the product had no such continuation

68%

of the people who saw the reason continued

and sent a request to the coordinator

4.2 h

median time to the coordinator's first response

94% of requests were answered within the business day

Metrics cover the first 8 weeks after release, without a control group. The base for the 31% is sessions where matching found no suitable technician. The calculation and its limits are in section 07.

The original failure

The reason was visible. The booking broke anyway.

If no nearby technician held the required certification, the interface explained the constraint but sent the user to Messages or a support phone number. The service, address and time were not carried forward - help lived outside the booking flow.

System state

No certified technician

Next step

Start over through support

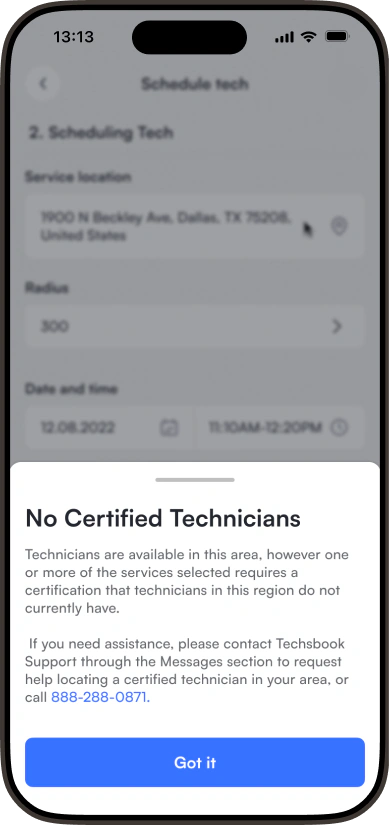

Screen before the change
Original Techsbook screen: no certified technicians, the only way forward is through support
01Diagnosis

The problem was the dead end, not the rejection

The map showed a technician nearby, but the next step would not let the customer pick them. One service required a PRO360 certification. I checked analytics, support tickets and customer interviews to size the failure first.

Analytics
12%

of sessions with a selected service ended with no result at all. In 83% of those sessions the user left the app within a single minute.

Support
47

tickets a month saying there were no technicians available. This was the second most frequent support topic after payment questions.

Interviews
6

interviews with customers after a zero result. Not one of them understood how to continue the same order without entering its details again.

"There were three people nearby on the map. I assumed the app was broken, closed it and called the service directly."

Fleet owner, 12 vehicles

"I would have waited a day or two if someone had told me it was being handled. As it is, there is just nothing."

Private customer, GPS installation

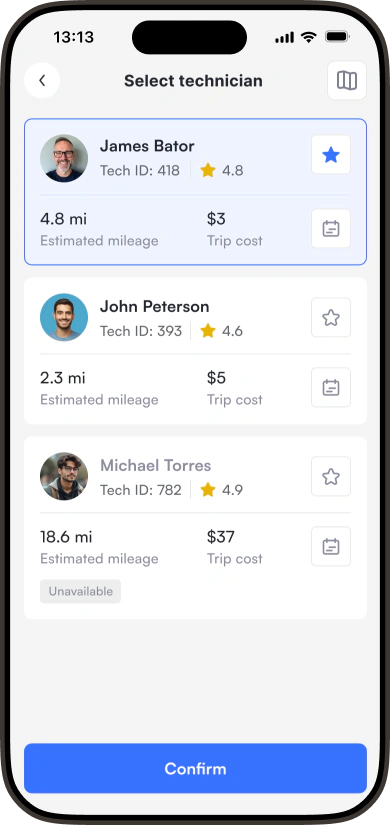

Real screenOriginal results
Existing Select technician results with available and unavailable technicians
Available and unavailable technicians sit side by side. A generic Unavailable status never says which condition failed.

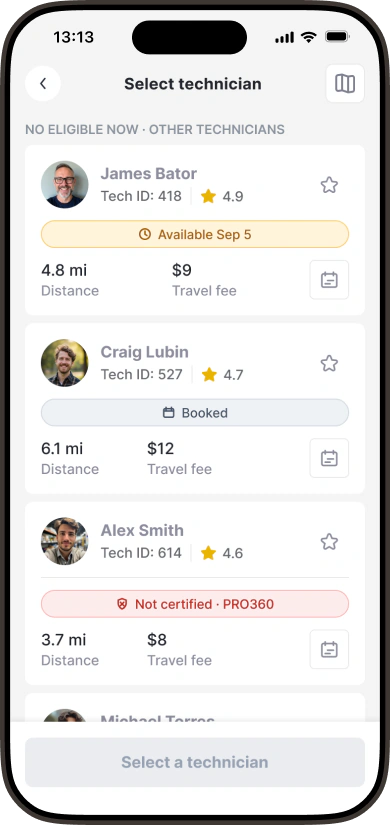

Proposed designNo-match results
Proposed Techsbook results with distinguishable technician availability states
Every technician carries the reason they are unavailable. Selection stays blocked until this order's conditions are met.

With the PM and the engineers we separated three independent constraints: certification, radius and availability. Being close on the map did not make a technician eligible. The fix needed two parts: explain the constraint and keep the path to booking.

02Model

One set of matching rules for the map and the list

A technician being present in the network does not mean they are eligible for a specific order. I broke matching into five states and made them the single source of signals for the map, the list and the recovery flow.

  1. 01

    Certified and free

    Can take this job right now.

  2. 02

    Available later

    Suitable, but at another time.

  3. 03

    Busy

    Qualified, but has no capacity.

  4. 04

    Not certified

    Cannot perform this service.

  5. 05

    Out of radius

    Sits outside the service area.

Proposed design

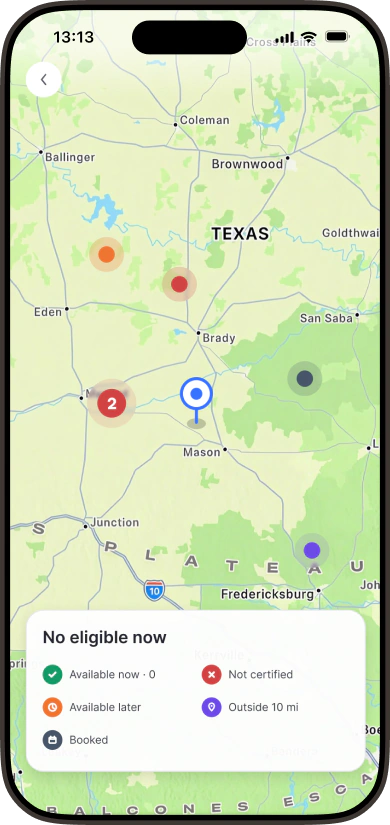

The map uses the same states as the list

Colour and icon show not just that a technician is present, but whether they fit this specific order. The legend holds that meaning without opening every pin.

Proposed Techsbook map with five technician eligibility states
03Decision

Keep the constraints and keep the order alive

The simplest fix is to relax the filters so the list is never empty. I compared five options against two criteria: does the interface stay honest, and can the customer continue the same order they already started.

OptionHonestOrder aliveVerdict
Relax the filtersNoYesShows a technician without the required certification as suitable. A non-empty list ≠ a successful match.
Extend the radius with consentYesPartlyWorks when a certified technician exists. Going outside the radius changes the travel fee and needs their consent - a coordinator's decision, not an automatic toggle.
A "we will notify you" waitlistYesNoThe order goes passive. From the interviews - in that time the customer calls the service directly.
A "call support" buttonYesNoThe order context is lost - the service, address and time have to be dictated again.
A request to the coordinator with the context savedYesYesThe reason is named, the order is not rebuilt, and the service gets an owner. The cost - it needs an operational part.
What it cost

The chosen option is the only one a single product team cannot ship on its own. It requires a queue, an owner and an SLA on the operations side. That became the main risk of the project - see section 06.

04Booking flow

Hand the order to a coordinator without retyping

First the customer sees why the result was empty. Then they check the saved details, send the request and follow its status in the app. The coordinator helps with matching, but never waives the qualification rules.

The user sees exactly what is limiting the choice

Proposed design

No required certification

Recovery state: no technicians nearby hold the PRO360 certification
There are technicians nearby, but none of them is certified for the selected service.

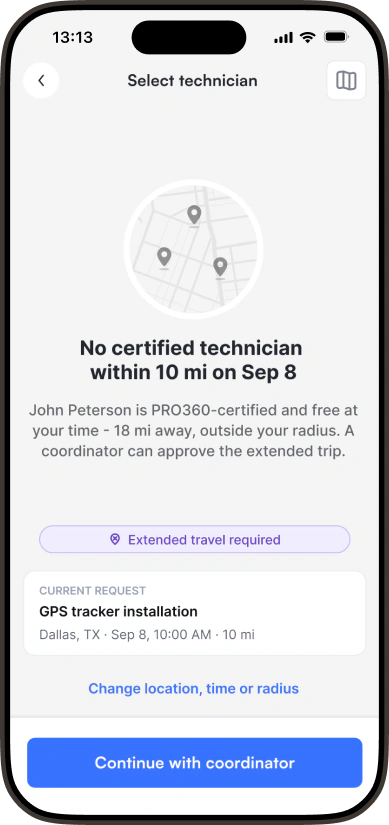

A trip beyond the radius

Recovery state: for the selected time a suitable technician is only available outside the radius
The technician fits the service and the time, but is located beyond the radius.

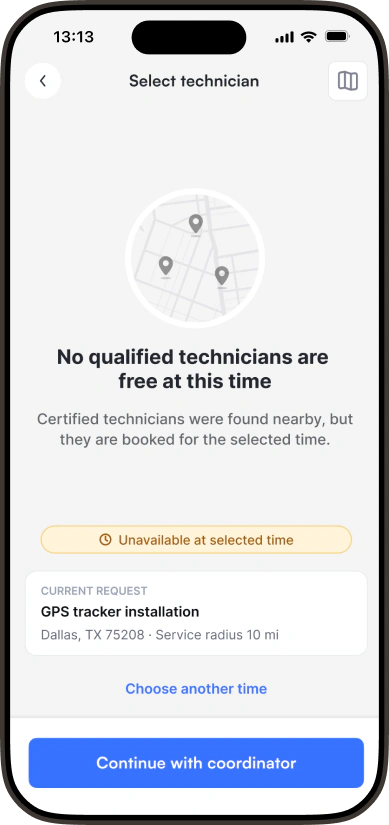

No free time available

Recovery state: qualified technicians are busy at the selected time
Technicians fit the service and the radius, but they are busy at the selected time.

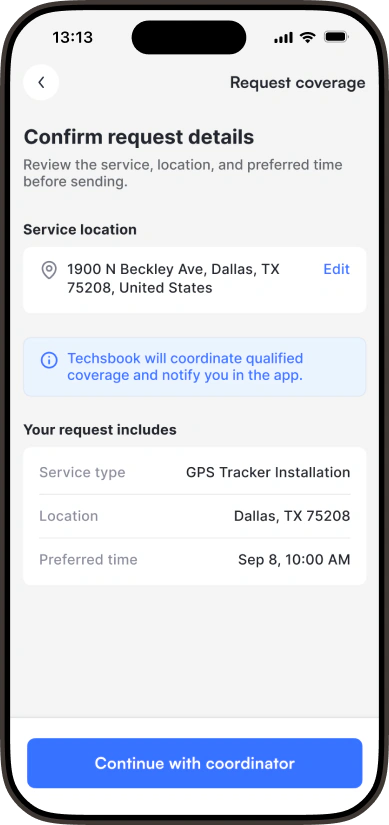

Check the order details

Screen confirming the request parameters before the handoff to a coordinator
The service, address and time are already filled in. The user checks the order details and sends them to a coordinator.

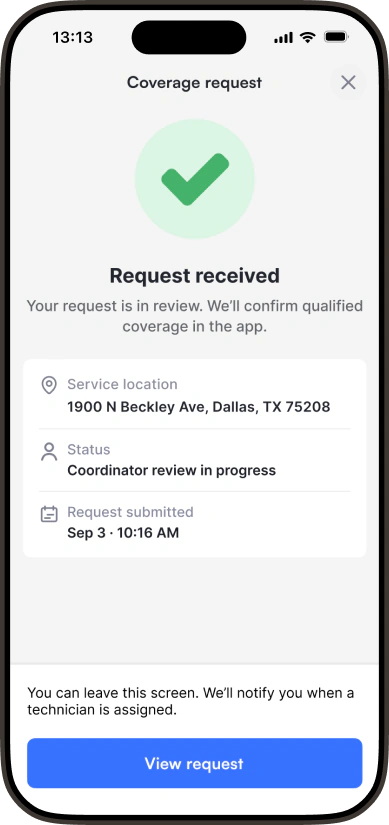

Follow the request status

Request received screen: the request is accepted, passed to a coordinator and stays visible in the app
The address and status stay inside the request. The user can leave the screen and wait for a notification in the app.

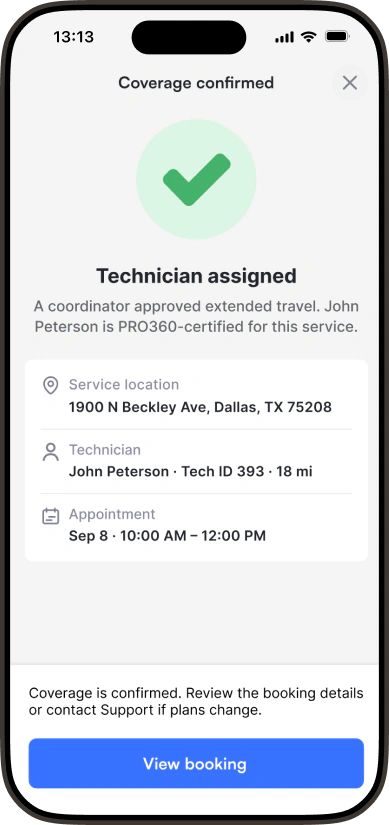

Return to the booking

Confirmed coverage screen with the assigned technician and the time
The technician, date and time are already known. The user opens the booking and checks the details of the order.
Prototype

The whole recovery flow in one pass

From placing the order and the eligibility check to the coordinator request, the technician assignment and the return to normal booking. This is the flow that went into user testing - see the next section.

05Validation

What the test changed in the booking flow

I ran a moderated test of the prototype with five customers who had hit an empty result before. Two findings changed the design, and one more changed the wording.

Finding 1

"Send request" read like filing a complaint

3 of 5 hesitated to tap it: they read it as a feedback form rather than a way to continue the order.

Changed: the screen title and the button - they now read "Continue the order with a coordinator".

Finding 2

The stated reason was missing spatial context

"No certified technicians" did not explain where they are. People kept asking: "What about the next district?"

Changed: kept a link to the full map, where the nearest technicians use the same state model as the list.

Finding 3

A specific deadline was read as a guarantee

Everyone read "Within 1 business day" as an exact promise, though response speed depends on coordinator load.

Changed: removed the exact deadline from the confirmation screen. First response time stayed an internal metric after release.

06Service

The request has an owner, a speed guardrail and a status

The chosen option needed an operational part. I built the blueprint, raised three open questions and agreed on an owner before release.

01 · Reason

The user sees why matching did not work

02 · Context

Requests help, the product keeps the service and address

03 · Operations

The order enters the CRM queue, a coordinator assigns a technician

04 · Status

The status comes back into the app

Open question

Who owns the request?

Decided: the shift coordinator, with requests visible in a shared CRM queue.

Open question

How is response speed controlled?

Decided: promise no exact deadline in the interface and track time to the coordinator's first response separately.

Open question

What does the user see while waiting?

Decided: request status in the orders section and a push when a technician is assigned.

07Results

Recovered bookings and how the service held

The release shipped in April 2026 on iOS, Android and Web. I counted continuation, not clicks: the matching stop rule was linked to the request created and to the payment that followed.

Metrics cover the first 8 weeks without a control group. They show an early direction, not a precise causal effect.

Key result
31%

of zero-result sessions could be linked to a paid booking afterwards. Before the release there was no recovery flow inside the product.

Early signal
68%

of the people who saw the reason get as far as sending a request. The main drop-off is on address confirmation.

Guardrail
4.2 h

median time to the coordinator's first response; 94% of requests were answered within the business day.

System health
71%

of zero results come from certification, not radius. That became the argument for widening the PRO360 training programme.

08Reflection

What I will change in the next project

I should have gone to operations in week one, not in week four.

Agreeing the queue and the SLA took two of the six weeks. Had I started with the blueprint instead of the screens, the release would have come sooner.

The drop-off on address confirmation is my own oversight.

In the test the address was always right. In reality a third of customers book an installation somewhere other than home, and the screen reads like an error. The next iteration is to offer the address from the last order.

The most valuable output is the reason data, not the flow.

The split across certification, radius and availability turned out to be more useful to the business than the recovery flow itself: it shows where the platform needs to widen its supply of technicians.
